Best configuration: 2S×2P (4 panels) → 400W
- 電流超過: 合成短絡電流 10.8A > 入力上限 10A。MPPT で制限されます
- コネクタ要変換: DC8020 → MC4 の変換アダプタが必要です
Adapter needed:
All configurations
- 1 panel → 100W
- 2 in series → 200W
- 2 in parallel → 200W
- 2S×2P (4 panels) → 400W
Price history
All-time low: ¥59,268← Here!
Potablen AI Simulator
Enter the appliance you want to use, and the AI will compute spec and tell you whether it works and for how long.
Spec Details
Battery
- Capacity
- 1,152 Wh
- Battery type
- LFP
- Cycle life
- 3,500 cycles
Output / Ports
- AC rated output
- 1,800 W
- Surge output
- 2,700 W
- Power Lift
- 2,700 W
- AC outlets
- 4 ports
- Waveform
- pure-sine
- USB-A ports
- 4 ports
- USB-C ports
- 1 ports
- Cigar socket
- 1 ports
Input / Charging

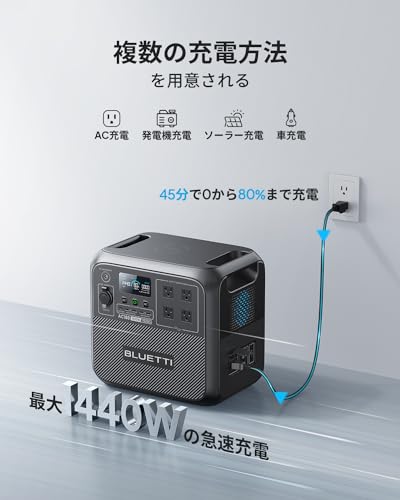

- AC charge input
- 1,440 W
- Full charge (AC)
- 78 min
- 80% charge
- 45 min
- Solar input
- 500 W
- Solar voltage
- 12V – 60V
- Solar current
- 10 A
- Connector
- MC4
Physical / Other
- Dimensions
- 340 × 247 × 317 mm
- Weight
- 16.4 kg
- Noise level
- 45 dB
- IP rating
- -
- App control
- Yes
- UPS function
- Yes
- UPS switch time
- 20 ms
Compatibility analysis for BLUETTI AC180
Results include voltage / current / wattage / connector checks based on registered specs. "Error" means safety-critical mismatch.
Solar panels for BLUETTI AC180
Best configuration auto-selected among 1 / 2 series / 2 parallel / 4 panels.
⚠️ solarInputPorts is not registered for this product. Assuming 1 port for evaluation. Update the schema in Sanity Studio if the product has multiple solar ports.
Vehicle chargers
⚠️ No vehicle chargers with full specs registered yet.
Appliances
⚠️ No appliances with full specs registered yet.
Portable fridges
⚠️ No portable fridges with full specs registered yet.
Portable ACs
⚠️ No portable acs with full specs registered yet.
Portable heaters
⚠️ No portable heaters with full specs registered yet.
※ Compatibility is computed from registered specs; real-world performance may vary. Affiliate links included.
